- Ultra-low pressure alarm — settable down to 0.9 Bar, ideal for off-road airing down
- Wide monitoring range: 0.9–6.0 Bar

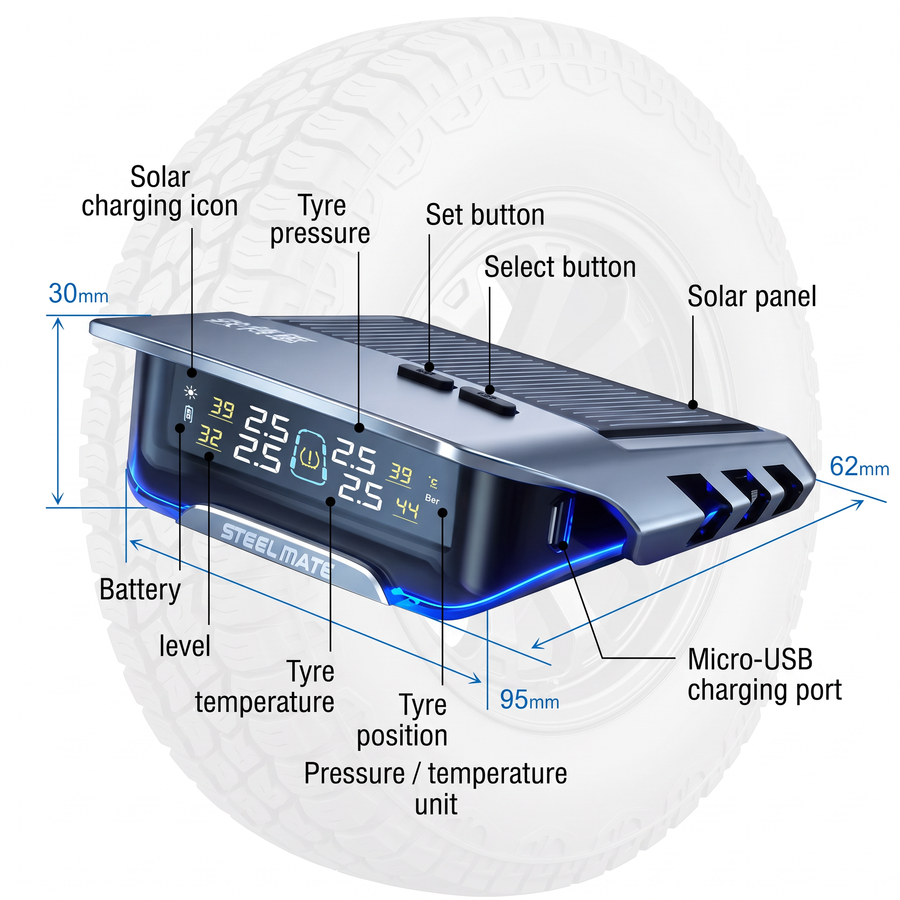

- Solar-powered colour display, no wiring required
- Fully wireless transmission between sensors and display
- Real-time pressure and temperature monitoring on all four wheels
- Visual and audible alerts for leaks, punctures, high temperature (80°C+) and low sensor battery
- Driver-adjustable alarm thresholds
- Switchable pressure units (Bar or PSI)
- Intelligent sleep mode for power saving
- Long sensor battery life — 4 years or more
- Sensors supplied pre-paired and labelled by wheel position
Specifications — Internal Sensors
- Battery service life: up to 200,000 km
- Battery life: ≥4 years
- Operating frequency: 433.92 MHz ± 0.05 MHz
- Operating voltage: 2.0–3.8 V
- Operating temperature: -40°C to +105°C (-40°F to +221°F)
- Weight: 18 g ± 1 g
Specifications — Display
- Operating frequency: 433.92 MHz ± 0.05 MHz
- Operating voltage: 12 V ± 3 V
- Operating temperature: -40°C to +85°C (-40°F to +185°F)
- Solar powered
Pairing Sensors to the Display
Please note: every TPMS kit and package we sell is supplied pre-programmed — no setup is needed out of the box. Re-pairing is only required with internal sensors after a tyre rotation, when sensor positions change. Two options:
Option 1 — manual
Fit the sensors, put the display into programming mode (refer to the manual), then inflate or deflate each tyre slightly as instructed. The sensor detects the pressure change and transmits to the display, where the data is saved.
Option 2 — sensor partner tool
An internal sensor partner (available on our website) triggers the sensors to transmit on demand, so there's no need to adjust tyre pressures at all. Fit the sensors, put the display into programming mode, activate each sensor with the tool, and save.
Step-by-step pairing procedure
- Press the spanner button five times in quick succession — a beep confirms you're in pairing mode.
- The front-left tyre position will begin flashing.
- Take the display to the flashing tyre position and release a small amount of air from that tyre.
- A pressure reading appears on the display after roughly 4–8 seconds.
- Press the spanner button once — the flashing stops, confirming the sensor is registered.
- Use the arrow button to move to the next tyre and repeat steps 3–5.
- With all four tyres done, hold the spanner button for 4 seconds to save and exit pairing mode.
